60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor
Laying Puller
Quick details
1.Transmission Line Stringing Equipment
2.Hydraulic 6T Conductor Laying Puller
3.Max pull:60kN
4.Engine:Cummins 77kw
5.Main parts:German Rexroth
6.German
7.Boyu Brand
TY60-1 Hydraulic Puller
Together with tension machine, this model allows for the tension
stringing of 220kV lines in mountainous and hilly areas and can be
used for the traction stringing of OPGW or ADSS cable in various terrains.
Performance parameter
Max intermittent pulling force : 60KN
Max continous pulling force: 50KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 25KN
Structure parameter
Puller wheel diameter: 450mm
Groove number: 7
Max diameter of applicable steel wire rope : 18mm
Max diameter of applicable wire coil: 1400mm
Total weight: 3500kg
overall dimension (length*width*height): 3800×2100×2300mm
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
Additional Devices
Lighting system for the trailer
Hydraulic rope clamp for reel change(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter
Main configurations
Engine:Cummins
Main pump: German Rexroth
Operating handle: German Rexroth
Main moterspeed reducer : German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
| Performance parameter | max inMax intermittent pulling force | 60kn |
| Max continous pulling force | 50kn |
| Corresponding speed | 2.5km/h |
| Max continous pulling speed | 5km/h |
| Corresponding pulling force | 25KN |
| Structure parameter | Puller wheel diameter | 450mm |
| Groove number | 7 |
| Max diameter of applicable wire coil: | 1400mm |
| Main comfigurations | Engine | Cummins |
| Main pump | German Rexroth |
Production pictures
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is
located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. Our company has a total
area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved
high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the
AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise,
also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also
achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company
establishing the Boset brand
In 2010 achieved the national ministry of science and technology
innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and
tension equipment (excluding mobile ground grinding) nearly 4000
sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan,
Burma, India, Mexico,Germany.
Our service
Quality, loyalty and service is our faith!
1.Deemed continuous improvement as our permanent pursuits.
2.We have introduced many advanced equipments and mature
techniques, to meet various of customers’ requirements.
3.We can adjustment the price according to your market demand’s
changes, and also can launch a series of promotional activities in
a bad economic environment.
4.We will do our best to deal with the problems our customers
encountered, in order to ensure our customers' satisfaction and
also improve our better reputation.
5. 24-hour hot line: 86-0510-80329270. Once receive the customer’s
enquiry , we will response within 24 hours.
6.Do the best Hydraulic 6T Conductor Laying Puller in China.

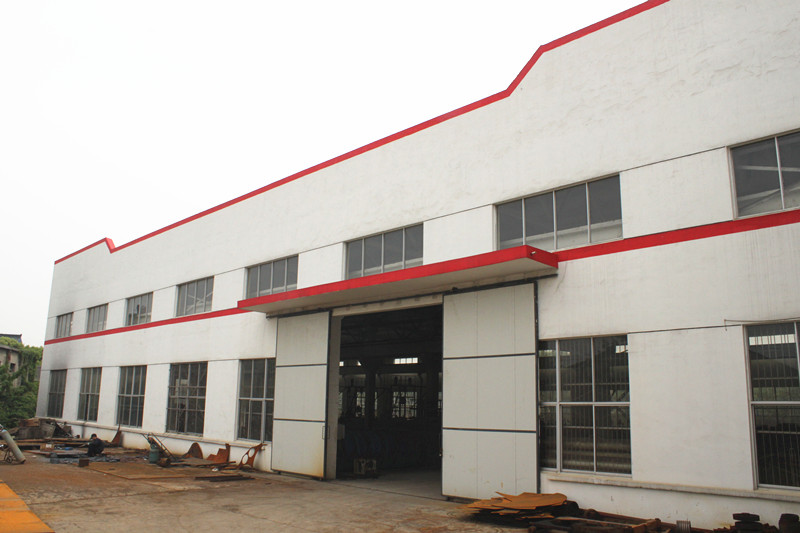

Workshop
