30T Single-Acting Busbar Bending Machine with Thickness 12mm

Quick details:

1. Transmission Line Stringing Equipment Accessories & Tools

2.Single-Acting Busbar Bending Tool
3.ertical and Horizontal
4.Max Thickness: 12mm
5.Max Width: 125mm
6.Output: 30T

7.Boyu Brand

Description:

• Single-Acting: with the help of hydraulic power, bending work can be easily accomplished
• After install roller, TYPLW01 can be easily taken to working place
• With 2 sets different bending dies, two kinds of bending be can properly made
• Wood Carton Package protect tool well during transport

Specification:

• Output: 30T Ram Stroke: 200mm
• Max Thickness: 12mm Width: 125mm Angle: 90 Degree
• Package: Wood Carton Size: 380x270x150mm
• Horizontal Crimping Die: 1 pc (R=5mm)
• Vertical Crimping Dies:7pc (4x10/80 5x40/80 6x40/80 8x40/80 10x100 10x125 12x125)
• Roller: 3 pcs

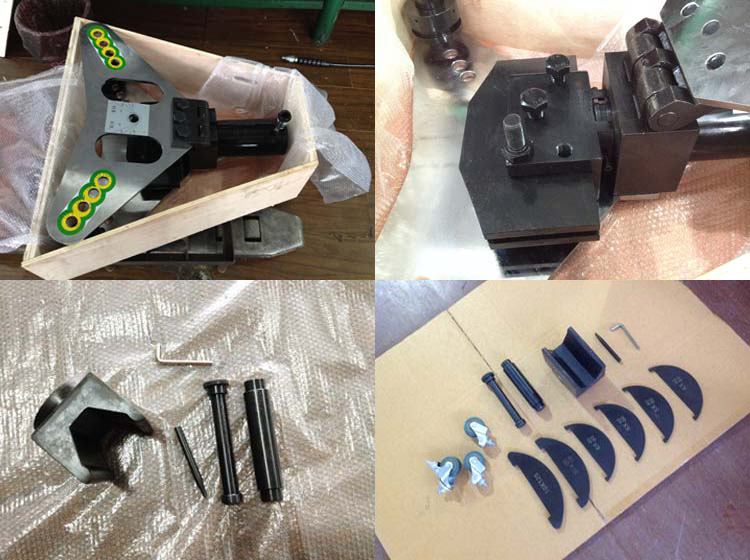

More picture of the Single-Acting Busbar Bending Tool

Maufacturer Introduction

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are at the east of China, near Shanghai, Nanjin, Hangzhou City, about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

• Line Stringing Equipment and accessories and tools.
• Nonmetallic galvanized the production equipment (Achieved high-tech products)
• Numerical control machine
• Low voltage no power-arc furnace compensation system.

We produce 40~60sets of stringing equipment each month and all kinds of accessories

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
