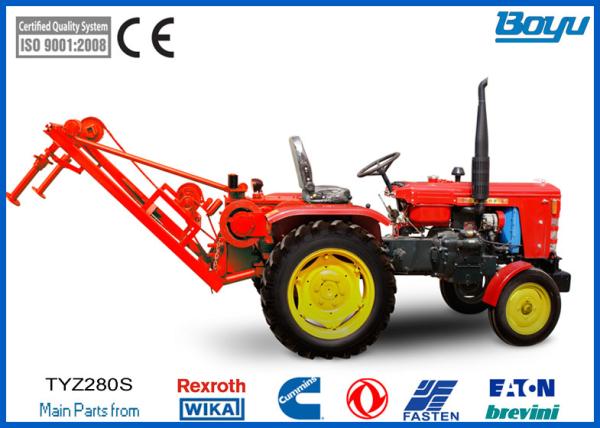

16mm steel rope Tractor Puller 110V 325mm Wheel with 6 Groove
Quick details:
- Tansmission Line Stringing Equipment
- Tractor Puller
- Max pull: 45kN
- Max rope diameter: 16mm
- Wheel diameter: 325mm
- Groove number: 6
- Boyu Brand
Description
Modified from Shanghai 50-tractor, this mechanically driven machine
has the advantages such as simple operation, high tractive force
and fast speed, making it not only a good choice for pole setting,
tower erecting and stringing in construction but also an ideal tool
for long-distance traction or tension stringing.
Characteristics
- Puller wheel diameter: 325mm
- Groove number: 6
- Max diameter of applicable steel rope: 16mm
- Total weight: 2260kg
- Overall dimension (length*width*height): 3360×1750×2320mm
Performance
| Gear | 1 | 2 | 3 | 4 | 5 | 6 | Reverse1 | Reverse2 |
| Pulling force (kN) | 50 | 30.6 | 16.2 | 12.7 | 7.7 | 4 | | |
| Speed (m/min) | 10.13 | 16.65 | 31.55 | 40 | 66.61 | 126.3 | 13.34 | 50.3 |
Company Introduction

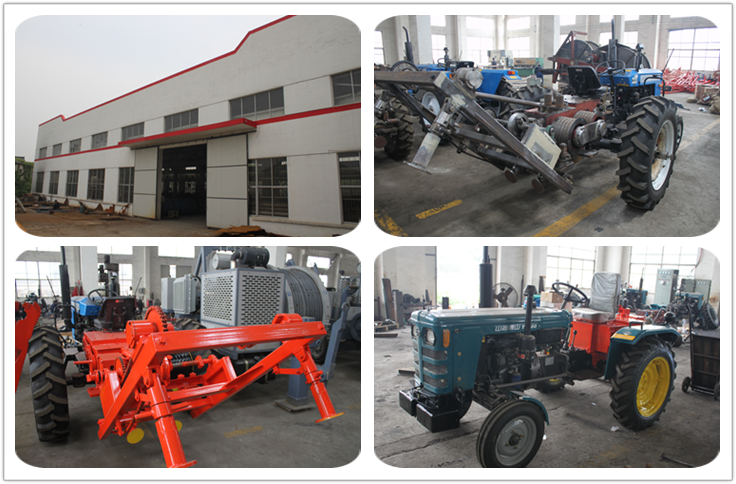

Yixing Boyu Electric Power Machinery Company is located in west
side of the beautiful and fertile Taihu Lake.
We are in east of China, near the biggest city in China Shanghai
about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. Our company has a total
area of 42800 square meters, having formed four series products:
Overhead Transmission line stringing equipment and accessories and
tools.
Nonmetallic galvanized the production equipment (Achieved high-tech
products)
Numerical control machine
Low voltage no power-arc furnace compensation system
Our goods have been used in 500KV/330KV/220KV/110KV and below
voltages transmission line stringing project, providing perfect
products and after sales services for safe operation of electrical
network.
There are 160 employees in Boyu, including 16 engineers. There are
also more than 40 sets of processing equipment, consist of 35 sets
mechanical processing equipment (including lathe, filing machine,
planer, grinder, ect), 2 sets vertical test equipment.
Our company used about 10% of term of accounting’s value of sale in
every year for R&D. Our company developed many types of product
to content requirement of customers, and Product won the customers
high praise.
TYZ280 Tractor Puller Together with tension machine, this model allows for the traction
and tension stringing of 110kV lines in mountainous and hilly areas
and can be used for the traction stringing of OPGW or ADSS cable in
various terrains. |
Performance | Gear | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Reverse1 | Reverse2 | | Pulling Force (kN) | 45 | 36 | 22 | 14 | 10.5 | 8.3 | 5.1 | 2.8 | | | | Pulling Speed (m/min) | 10.5 | 13.3 | 21.7 | 34.4 | 45.4 | 57.4 | 93.4 | 166.6 | 9.8 | 42.5 |
|
Characteristics Puller wheel diameter: 325 Groove number: 6 Max diameter of applicable steel wire rope: 16mm Total weight: 1800kgs Overall dimension (length*width*height): 2974×1380×1438mm |
