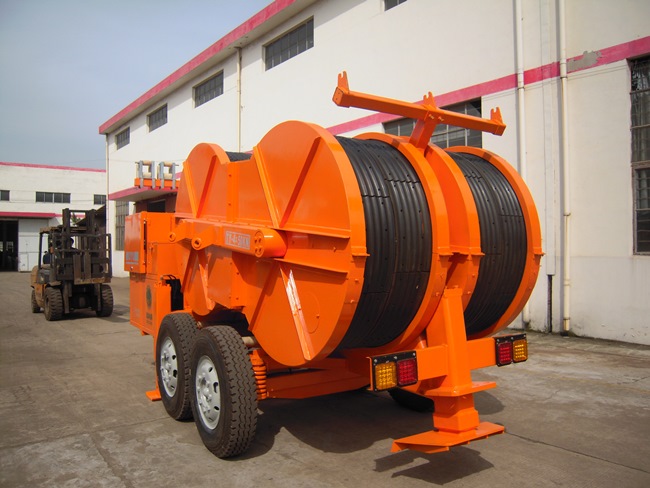

4 x 50kN Stringing Equipments of Hydraulic Tensioner with 4 Bundle
Conductors , German Parts
Quick details
- 1,2,3,4-Bundle Conductor Tension Stringing Equipment
- Hydraulic Tensioner for four bundle conductor
- Max tension: 4x50kN/2x100kN 20Tons
- Diesel: Cummins 77kw 103hp
- Main pump and motor and speed reducer: German Rexroth
- Hydraulic meter: German
- Max conductor diameter: 40mm
- Engine: Cummins
- Boyu Brand
Characteristics
Bull-wheel diameter: 1500mm
Max conductor diameter: 40mm
Groove number: 4x5
Total weight: 13000kg
Overall dimension (length*width*height): 5900×2300×2700mm
Description
The machine allows for the tension stringing of 4-bundle conductor
of 630mm2 and below in mountainous and hilly areas, of 4-bundle conductor of
720mm2 and below in flat lands, and of 2 conductor 720mm2 in various terrains; besides, it can be used for tension stringing
of OPGW or ADSS optical cable and 500kV haulage rope in various
terrains
Performance
- Max intermittent tension: 4x50kN
- Max continuous tension: 4x40kN
- Speed at max tension: 2.5km/h
- Max speed: 5km/h
- Tension at max speed: 4x20kN
- Max reverse pulling force: 4x40kN/2*80kN
- Max reverse pulling speed: 1.25km/h
Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
Main configuration
- Engine: Cummins
- Hydraulic pump: German Rexroth
- Main motor: German Rexroth
- Speed reducer: German Rexroth
- Hydraulic meter: German
- Operating handle: German Rexroth
Configuration
4 hydraulic dynamometers
Hydraulic oil cooling system
4 negative self-acting hydraulic brakes
4 digital speed and meter counters
Control instruments for hydraulic system and diesel engine
Hydraulic power pack to control up to 4 separated durm stands with
hydraulic motor
Hydraulic front and behind stabilizer
Grounding connection point
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Additional Devices
- Lighting system for the trailer
- Air brake system for the trailer
- 4 hydraulic conductor clamps for drum change operations (extra
charge)
- Digital speed and meter counter
- 2 hydraulic behind stabilizeds and 2 front stabilizer
- 4 swivel guide conductor roller
- Trailer for towing at max speed of 30 km/h
Manufacturer Introduction
Yixing Boyu Electric Power Machinery Company is located in west
side of the beautiful and fertile Taihu Lake. We are near the
biggest city in China Shanghai about 3 hours by car.
We produce 60~100sets of stringing equipment each month and all
kinds of accessories.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
History
| Established in 1994, Yixing city Boyu power machinery Co., LTD |
| In 2001 the company passed ISO9001 certification, and obtain the
AAA certificate |
| In 2006 attains the Wuxi city contract trustworthiness enterprise,
also achieved famous brand product in Wuxi city |
| In 2007 attains the high-tech enterprise of Jiangsu province, also
achieved brand-name products in Jiangsu province |
| In 2009 reworded significant achievement in Wuxi city |
| In 2010 Boyu cooperated with Germany famous Caesar Company
establishing the Boset brand |
| In 2010 achieved the national ministry of science and technology
innovation in science and technology project. |
| To November, 2013, Boyu enterprise has already sell puller and
tension equipment (excluding mobile ground grinding) nearly 5000
sets. Our products are sold well in Australia, Egypt, England,
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria,
Turkey, Peru, Colombia, Brazil, Argentina etc. |
