Transmission Line Stringing Tools 1.0Ton Manual Wire Rope Pulling Hoist Lever Hoist Pulling Winch for Lifting

Description

1. Scope of application: The wire rope hoist is adapted for use in narrow areas where local space is limited. For field work, high altitude operation, BYSM-618 1.0 type steel wire rope hand plate hoist deep well operation and no mechanical and electrical energy supply site for lifting operation will show special advantages.
2. How to use: The forward (backward) handle is first pulled to the machine, and then the handle is released by hand to the front of the machine, and the tip can be snapped into the upper step of the housing. At this time, the upper and lower clamps of the front and rear calipers are OK. The opening can be worn (pumped), and then the clamp can be pushed forward and down to release the handle, so that the clamp can clamp the wire rope (or reset) and put into operation.
3. Working principle: Wire rope hand lever hoist is a manpower wrench handle, with the help of the lever principle to obtain a straight line traction matching the load, alternately acting on a clamp body of the machine core load, running with a supporting load.
4. The body structure is novel: The machine adopts cast aluminum alloy body with beautiful appearance, compact body, small volume and light weight. Adopt two-stage gear transmission, high-speed helical gear transmission, so the transmission is stable and the noise is small.
5. High strength of parts: The main parts of the machine are made of high strength alloy steel material and processed by many special heat treatment processes. The upper and lower hooks are made of high-strength alloy steel, which has very strong heat treatment. High toughness, even if the body is damaged by overload, the hook will only produce sag deformation without brittle fracture.

Quick Detail

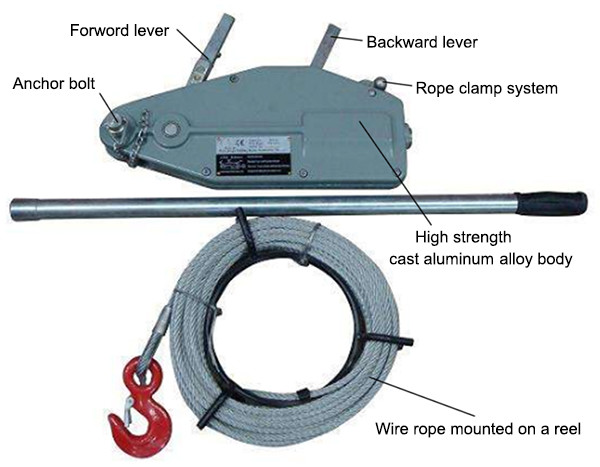

Forward lever, backward lever
Placed in tandem providing a slim design and assuring power transfer along the center.
Rope clamp system
Easily disengaged with a lever to smoothly install the wire rope.
Spare shear pins
Two pieces of spare shear pins locked in the carrying handle.
Steel wire rope mounted on a reel
Each rope has been tested by operation, reaching 150% of the rated capacitor.
Anchor bolt
Offers numerous and versatile connection possibilities with load hooks, sling ropes and sling chains.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
