150kN Stringing Equipment for 500KV Transmission Line with 600mm
Bull Wheel 10 Groove German Rexroth Pump Reducer Motor

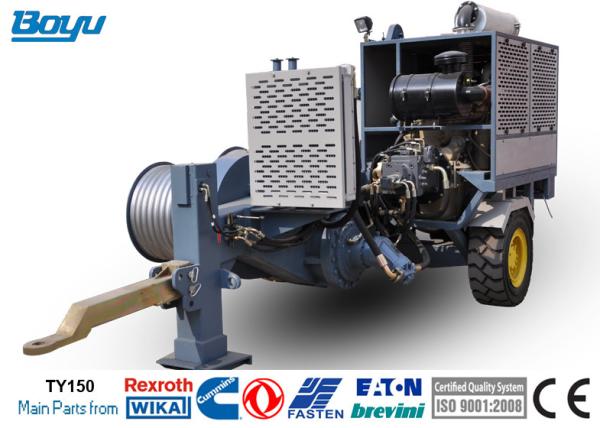

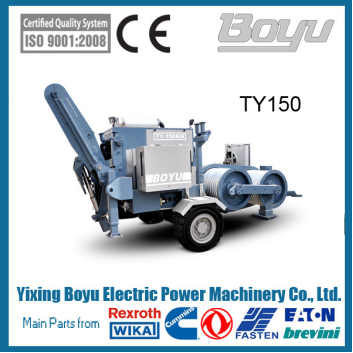

TY150 Hydraulic Puller The machine allows for the tension stringing of 4-bundle conductor
of 630mm2 and below in mountainous and hilly areas, and of 4-bundle
conductor of 720mm2 and below in flat lands; besides, it can be used for traction
stringing of OPGW or ADSS optical cable and 500kV traction
stringing in various terrains. |
|  |
Characteristics Bull-wheel diameter: 600mm Groove number: 10 Max rope diameter : 24mm Electric system: 24V Max diameter of rope reel: 1600mm Total weight: 5500kg Overall dimension (length*width*height): 4300×2300×2400mm | Performance Max intermittent pull: 150kN Max continuous pull: 120kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 60kN |
Engine Diesel 239kw(320hp) Cooling system water Electrical system 24V |
Main configuration Engine: Cummins hydraulic pump: German Rexroth Main motor: German Rexroth speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth | Hydraulic Transmission Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur. |
Configuration Hydraulic dynamometer with set-point and automatic control of
maximum pull Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine On board reel winder with automatic level wind, suitable for
standard reel mod. 1400 and 1600 Hydraulic front stabilizer Grounding connection point | Additional Devices Lighting system for the trailer Hydraulic rope clamp for reel change Swivel guide rope roller Trailer for towing at max speed of 30 km/h Extra shaft Digital speed and meter counter (extra charge) |
Company Profile
Yixing Boyu Electric Power was established in 1994, a high-tech
enterprise in China, More than 27years experience on Power
Equipment. We are specializing in R & D, manufacturing and sales of
kinds of transmission line construction machines and tools such as
hydraulic puller, tensioner, conductor pulleys, anti-twisting
galvanized steel rope as well as providing accessories and
technical service for customer. After years efforts, Boyu has
developed as one of the largest stringing equipment and tools
manufacturer in China which has more than 200 varieties kinds of
goods now.
We have more than 27 years rich experience in this field and
provided more than 1000sets equipment for the customer in Power
System, Our products are very popular in China, and main customers
from STATE GRID, CHINA POWER etc. Besides, we expanded our business
to International market, Australia, UK, Turkey, Mexico, Peru,
Brazil, Egypt, Sudan, Kenya, Angola, India, Pakistan, Burma,
Philippines etc.
Our products have been used in 500KV/330KV/220KV/110KV and below
voltages transmission line stringing project, providing perfect
products and after sales services for safe operation of electrical
network. This year, our R&D team is preparing for ultra-high
voltage project 2015 in China.
There are 158 employees in Boyu, including 16 engineers. There are
also more than 40 sets of processing equipment, consist of 35 sets
mechanical processing equipment (including lathe, filing machine,
planer, grinder, ect), 2 sets vertical test equipment.
Our company used about 10% of term of accounting’s value of sale in
every year for R&D. Our company developed many types of product
to content requirement of customers, and Product won the customers
high praise.
Yixing Boyu Electric Power Machinery Co., Ltd insist cooperation
culture of Quality as life, reputation as fundamental, and engage
in providing reliable and safe operation of power network for the
customers. Our company works for the development of electric power
industry and strives for the transmission line construction
machinery to catch up with the international level. Yixing Boyu
Electric Power Machinery Co., Ltd is willing to create a friendly
cooperation relationship with customers to seek development and
create prosperity.
Worksite in Sri Lanka
