Conductor Stringing Equipment Tractor Puller TYZ800 Groove Number 8

TYZ800 Tractor Puller

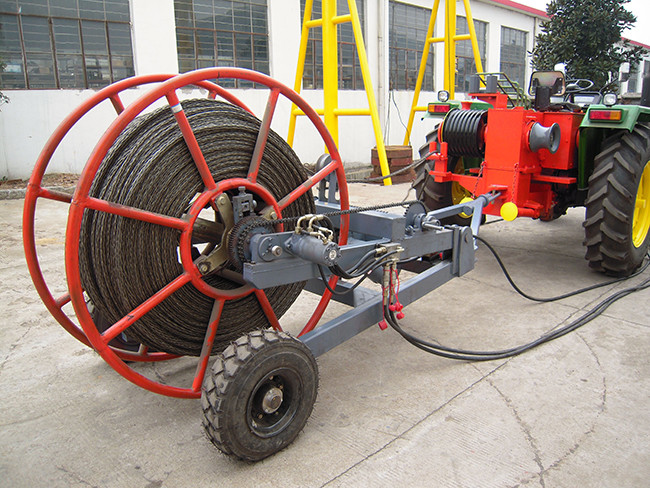

Modified from JDT8002 tractor of John Deerer Tianjing Tractor Co., Ltd., this mechanically driven machine has the advantages such as simple operation, high tractive force, fast speed and easy maintenance, making it not only a good choice for pole setting, tower erecting and stringing in construction but also an ideal tool for traction or tension stringing of conductors below 630mm2. The machine can also be provided with take-up and winding device as required by the user.

Performance

Characteristics

Puller wheel diameter: 450mm

Groove number: 8

Max diameter of applicable steel wire rope: 18mm

Total weight: 4300kgs

Overall dimension (length*width*height): 4050*2150*2690mm (with reel winder)

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
