Tension Stringing Equipment Hydraulic Tensioner Main Motor Tianjin
Parker Groove Number 5

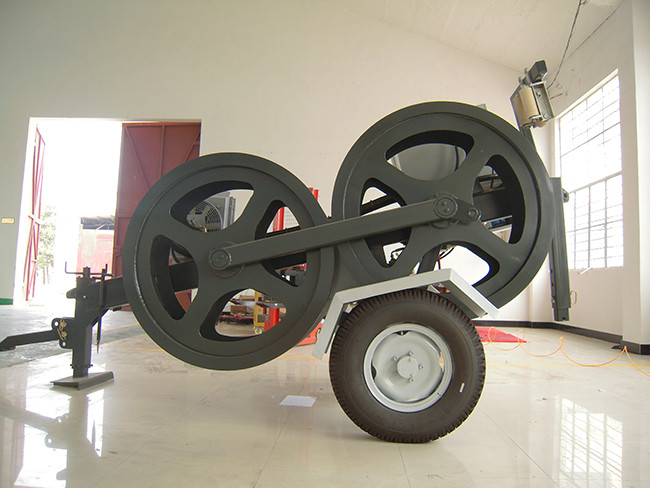

TY1x20 Hydraulic Tensioner
- The machine is hydraulically controlled for the tensile force and
complete with quality parts and components such as hydraulic break,
high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient
performance.
- The hydraulic power unit provides the traction of conductors at
both positive and negative directions.
- The single-beam trailer chassis is also adopted, where lifting
points are pre-set for anchoring and temporary anchoring, to
achieve a portable compact integrity easy to be loaded, transported
and transferred.
| Model | TY1x20 |
| Max continuous pull | 20kN |
| Max speed | 5km/h |
| Main motor | Tianjin Parker |
Characteristics
Bull-wheel diameter: 1300mm
Max conductor diameter: 40mm
Max Optical fiber cable diameter: 21mm
Groove width: 55mm
Groove number: 5
Total weight: 1920kg
Overall dimension (length*width*height): 4080×1930×2300mm
Performance
Max continuous pull: 20kN
Max speed: 5km/h
Main configuration
Main motor: Tianjin Parker
Speed reducer: German Rexroth
Hydraulic meter: German
Hydraulic Transmission
The machine can realize step less speed
The machine is provided with tension presetting system
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Grounding connection point
Additional Devices
Air brake system for the trailer (extra charge)
Hydraulic conductor clamps for drum change operations (extra
charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Boyu introduction
Yixing Boyu Electric Power Machinery was established in 1993,
high-tech enterprise, we are specializing in R & D, manufacturing
and sales of transmission line stringing equipment and tools such
as hydraulic puller, tensioner, conductor pulleys, anti-twisting
galvanized steel rope as well as providing accessories and
technical service for customers. Boyu has developed as one of the
largest stringing equipment and tools manufacturer in China which
supply more than 200 varieties kinds of goods now.
2 Accountant;
11 Sales & After sales
8 Management
20 Engineers
117 Workers
Asia: Indonesia, India, South korea, Philippines, Pakistan,
Thailand, Cambodia, Viet nam, Malaysia, Nepal, Sri Lanka, Turkey,
Jordan, Tajikistan, Saudi Arabia
America: Peru, Honduras, Mexico, Bolivia, United state, Ecuador,
Chile, Brazil, Panama, Argentina
Europe: Poland, United Kingdom
Australia: Australia
Africa: Egypt, Algeria, Tanzania, Kenya, Ethiopia, Angola, Sudan
Branch:
1. Indonesia Jakarta office
2. India Delhi office
After-sales service warranty
1) One year quality guarantee, if internal components go wrong
within one year, we will change another for free.
2) Provide some easily damaged parts of the equipment to ensure the
normal operation.
3) If any quality problems such as design, manufacture, function or
procedure occur within the guarantee period, BOYU shall take full
responsibility and bear all the economic losses incurred.
4) If any other quality problems occurs within the guarantee
period, we shall provide online video service after receive the
buyer's notice in 24 hrs.
5) If any big quality problems occurs out of the guarantee period,
we will also provide online video service after receive the buyer's
notice in 48 hrs.
6) Provide a lifetime favorable price to the buyer with the
materials and spare parts used in system operation, equipment
maintenance, and guarantee 7days courier door by door.
