    Stringing Equipment Hydraulic Cable Puller Groove Number 10 Diesel 239kw(320hp)

    Stringing Equipment Hydraulic Cable Puller Groove Number 10 Diesel 239kw(320hp)

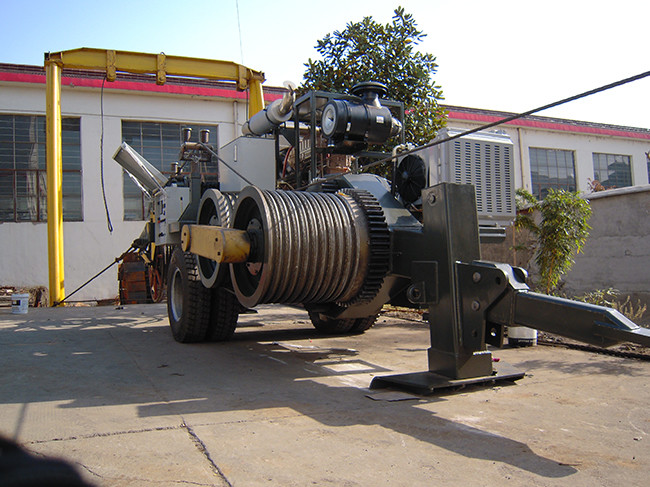

    TY220 Hydraulic Puller

    The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands;

    besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.


    ModelTY220
    Max intermittent pull220kN
    Max continuous pull180kN
    Speed at max pull2.5km/h
    Max speed5km/h
    Pull at max speed90kN
    Bull-wheel diameter760mm
    Groove number10
    Max rope diameter30mm
    Max diameter of coupling100mm
    Electric system24V
    Max diameter of rope reel1600mm
    Total weight6800kg
    Overall dimension (length*width*height)5300*2600*2750mm
    Diesel239kw(320hp)
    Cooling systemwater
    Electrical system24V
    EngineCummins
    Main pumpGerman Rexroth
    Main motor speed reducerGerman Rexroth
    Tail bracket hoisting motorAmerican Eton
    Hydraulic meterGerman
    Operating handleGerman Rexroth

    Stringing Equipment Hydraulic Cable Puller Groove Number 10 Diesel 239kw(320hp)


    BOYU Overseas marketExport country
    • Asia: South korea, Philippines, Pakistan, India, Thailand, Cambodia, Viet nam, Indonesia, Malaysia, Nepal, Sri Lanka, Turkey, Jordan, Tajikistan, Saudi Arabia
    • America: Mexico, Bolivia, United state, Ecuador, Chile, Peru, Brazil, Panama, Argentina, Honduras,
    • Europe: Poland, United Kingdom
    • Australia: Australia
    • Africa: Algeria, Egypt, Tanzania, Kenya, Ethiopia, Angola, Sudan

    Branch

    • Indonesia Jakarta office
    • India Delhi office
    After-sales service warranty
    • 1) We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
    • 2) We will provide some easily damaged parts of the equipment to ensure the normal operation.
    • 3) If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.
    • 4) If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer's notice in 24 hrs.
    • 5) If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer's notice in 48 hrs.
    • 6) BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
    • 7) Operation and Maintenance training
    • We supply free operation and maintenance training in our factory, and cover all cost of accommodation in China.
    • We supply 3~5days engineering support for operation & maintenance training on your work site, but you have to pay for the cost of accommodation, transportation and round trip ticket.
