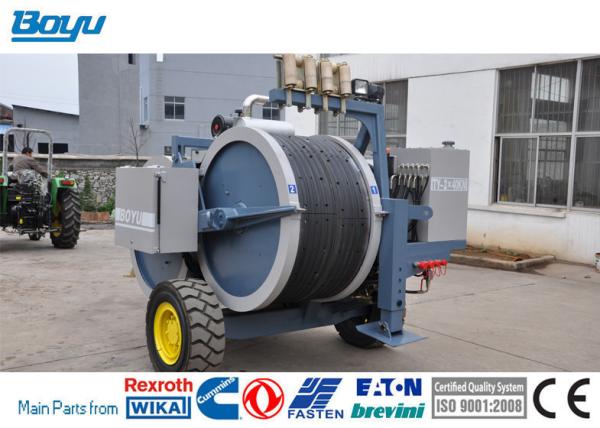

TY2x40 Tension Stringing Equipment Hydraulic Tensioner Water
Cooling System
This machine allows for the tension stringing of twin-bundle
conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor
of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing
of OPGW or ADSS optical cable and 500kV haulage rope in various
terrains
| Model | TY2x40 |
| Max intermittent pull | 2x45kN |
| Max continuous pull | 2x40kN |
| Speed at max pull | 2.5km/h |
| Max speed | 5km/h |
| Pull at max speed | 2x20kN |
| Max reverse pulling force | 2x35kN |
| Max reverse pulling speed | 5km/h |
| Bull-wheel diameter | 1300/1500mm |
| Max conductor diameter | 40mm |
| Groove number | 2x5 |
| Total weight | 5800kg |
| Overall dimension (length*width*height) | 4300*2250*2700mm |
| Engine | Cummins |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electrical system | 24V |
Configuration
Hydraulic front stabilizer
Hydraulic dynamometers
Hydraulic oil cooling system
Digital speed and meter counter
Hydraulic power pack to control up to 2 separated drum stands with
hydraulic motor
Grounding connection point
Additional Devices
Trailer for towing at max speed of 15 km/h
Lighting system for the trailer
2 hydraulic rope/conductor clamp(extra charge)
Swivel guide rope roller
Digital speed and meter counter
Hydraulic Transmission
The machine is provided with tension presetting system.
The machine can realize step less speed.
Company Introduction
Yixing Boyu Electric Power Machinery Co., Ltd was established in
1993, we are high-tech enterprise in China, specializing in R & D,
manufacturing and sales of kinds of transmission line stringing
equipment and tools such as hydraulic puller, tensioner, conductor
pulleys, anti-twisting galvanized steel rope as well as providing
accessories and technical service for customers. After years
efforts, Boyu has developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than
200 varieties kinds of goods now.
Now our annual output value reaches more than thirty million USD,
and we provide more than 1000 sets of equipment for customers in
the Power System, our products are very popular in China and all
over the world, and our main customers include STATE GRID, CHINA
POWER, EETC etc. We also develop business in the International
market more than 10 years and more than 50 countries.
Start from 2019, we take part in the International tenders of
Oversea Government companies, We won the tender from a lot of
countries.
