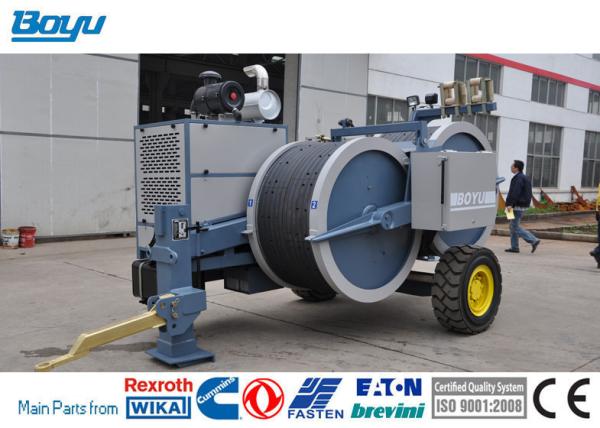

Tension Stringing Equipment 2x40kN Tension For Overhead Line
Machine Diesel 77kw(103hp)
TY2x40 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle
conductor of 630mm2 and below in mountainous and hilly areas, of
twin-bundle conductor of 720mm2 and below in flat lands, and of
conductor 720mm2 in various terrains; besides, it can be used for
tension stringing of OPGW or ADSS optical cable and 500kV haulage
rope in various terrains
Characteristics - Bull-wheel diameter: 1300/1500mm
- Max conductor diameter: 40mm
- Groove number: 2x5
- Total weight: 5800kg
- Overall dimension (length*width*height): 4300*2250*2700mm
|
Performance - Max intermittent pull: 2x45kN
- Max continuous pull: 2x40kN
- Speed at max pull: 2.5km/h
- Max speed: 5km/h
- Pull at max speed: 2x20kN
- Max reverse pulling force: 2x35kN
- Max reverse pulling speed: 5km/h
|
Main configuration - Engine: Cummins
- Hydraulic pump: German Rexroth/Dnish Danfoss
- Main motor:German Rexroth/French Leduc
- Speed reducer: German Rexroth
- Hydraulic meter: German
- Operating handle: German Rexroth
|
Engine - Diesel: 77kw(103hp)
- Cooling system: water
- Electrical system: 24V
|
Operation and Maintenance training
Training courses Get the best performance from Boyu machines
Boyu is not a "simple manufacturer" - Boyu is Your best partner!
Our Professional Group can offer their expertise by holding
technical courses to all customers maximum one month time, and provide accommodation. From Operation to maintenance, Boyu
technical training courses are also customized according to
different levels of knowledge and to what kind of aim a customer
would attain.
Customer support Customer is our first priority
Our contact person will do the best to deal with the problems our
customers encountered, in order to ensure our customers'
satisfaction and without any commitment from your side. An
introduction course has been planned for all the customers that buy
Boyu machines, we provide free technical support by means of phone
or mail. Also our customers can download operation and maintenance
videos from our website.
BOYU supply free operation and maintenance training in our factory,
and cover all cost of accommodation in China.
BOYU supply 3~5days engineering support for operation & maintenance
training on your work site, but you have to pay for the cost of
accommodation, transportation and round trip ticket.
BOYU will provide some easily damaged parts of the equipment to
ensure the normal operation.
If any quality problems such as design, manufacture, function or
procedure occur within the guarantee period, BOYU shall take full
responsibility and bear all the economic losses incurred.
If any other quality problems occurs within the guarantee period,
BOYU shall provide online video service after receive the buyer’s
notice in 24 hrs.
If any big quality problems occurs out of the guarantee period,
BOYU will also provide online video service after receive the
buyer’s notice in 48 hrs.
BOYU will provide a lifetime favorable price to the buyer with the
materials and spare parts used in system operation, equipment
maintenance, and guarantee 7days courier door by door.
