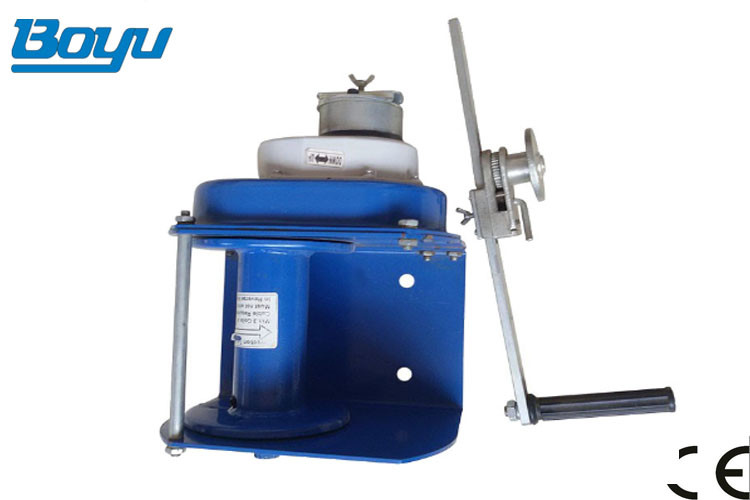

Transmission line stringing tools 1t 2t 3t mini portable wire rope heavy duty hand winch with break

heavy duty hand winch is a kind of new manualwinch. it saves labor than the old winch, alsoeasier operation. it could used for ascension,traction, drag and drop. also suitable for heavytraction, lifting, lowering, facilities installation lin the open air.

Features:
1)Reversible ratchet to allow cranking webbing or cable onto the drum in either direction.
2)Load matched gear ratios for easier cranking.
3)2-Ways mode makes both forward and reverse cranking from one side.
4)Heavy duty winch body, Standard mounting holes.
5)Surface Treatment: powder coating and zinc plating.
6)Carbon steel heat treated bushes, shaft and gears.
7)Resistanl to bad weather, Easy to mount, Portable.
8)Mooring Hook Equipped with a Safetypawl.

WARNING

TO PREVENT SERIOUS INJURY TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

Cleaning and Maintenance,

1. BEFORE EACH USE, inspect the general condition of the Winch. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts and any other condition that may affect its safe operation.

2. AFTER USE, clean external surfaces of the appliance with clean, moist cloth.

3.WARNING! If the Belt Strap of Winch is damaged, it must be replaced immediately before further use

Model		JW2-500	JW2-1000	JW2-2000	JW2-3000
Rated load T		0.5	1	2	3
Test Load KN		6.125	12.25	24.5	36.75
Application steel wire Dia.(mm)x Length(m)		Φ6.3*40	Φ8*40	Φ9*40	Φ12.5*40
Speed Ratio		4.33:1	12.18:1	22.68:1	29.16:1
Length of hand bar mm		350	350	350	350
Min hand force N		120	120	130	180
Diamention (mm)	A	Φ60	Φ76	Φ90	Φ100
	B	Φ140	Φ175	Φ190	Φ230
	C	150	154	195	205
	D	100	110	155	155
	E	Φ15	Φ18	Φ18	Φ18
	F	403	443	490	549
	H	182	214	230	296

Customer guidance

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
