Max 8Tons 2x40kN Tension Stringing Equipment Two Rope Conductors Hydraulic Cable Tensioner

Quick details
1. Max tension: 2x40kN/80kN 8Tons
2. Diesel: Cummins 77kw 103hp
3. Groove number: 2x5
4. Bull-wheel diameter: 1300mm
5. HydraulicTension Stringing Equipment
6. Hydraulic Tensioner Two Rope Conductors
7. Main pump and motor and speed reducer: German Rexroth
8. Hydraulic meter: German
9. Max conductor diameter: 40mm
10. Groove number: 2x5
11. Boyu Brand

Performance

Main configuration

• Engine: Cummins
• Hydraulic pump: German Rexroth
• Main motor: German Rexroth
• Speed reducer: German Rexroth
• Hydraulic meter: German

Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Engine

• Diesel 77kw(103hp)
• Cooling system water
• Electrical system 24V

Characteristics

• Bull-wheel diameter: 1300mm
• Max conductor diameter: 40mm
• Groove number: 2x5
• Total weight: 4500kg
• Overall dimension (length*width*height): 4300×2250×2700mm


Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Mechanical meter counters
• Grounding connection point


Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.

Additional Devices

• Lighting system for the trailer
• Hydraulic brake system for the trailer
• 2 hydraulic conductor clamps for drum change operations
• Electronic pull and speed recorder

Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German
　　2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system





Max 8Tons 2x40kN Tension Stringing Equipment Two Rope Conductors Hydraulic Cable Tensioner

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

Company

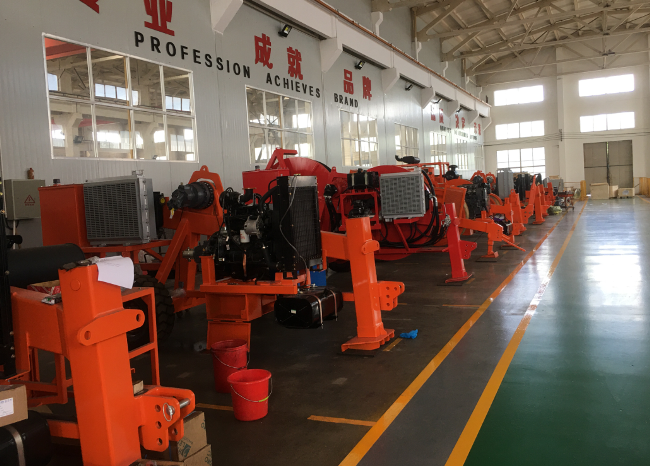

Workshop

Construction Site
