3T Transmission Line Tension Stringing Equipment with Honda Gasoline Engine Hydraulic Cable Tensioner

Quick details

• 1. HydraulicTension Stringing Equipment
• 2. Hydraulic Tensioner
• 3. Max tension: 1x30kN
• 4. Gasoline Engine: 12kw 16hp
• 5. Engine: Japan Honda or Robin
• 6. Hydraulic meter: German
• 7. Max conductor diameter: 40mm
• 8. Max Optical fiber cable diameter: 21mm
• 9. Groove number: 5
• 10. Boyu Brand

Description
The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred

Performance

1. Max continuous tension: 1x30kN
2. Speed at max tension: 2.5km/h
3. Max speed: 5km/h
4. Tension at max speed: 1x15kN
5. Max reverse pulling force: 1x20kN

Engine

1. Gasoline 12kw(16hp)
2. Cooling system water
3. Electrical system 24V

Characteristics

• Bull-wheel diameter: 1300mm
• Max conductor diameter: 40mm
• Max Optical fiber cable diameter: 21mm
• Groove width: 60mm
• Groove number: 5
• Total weight: 2400kg

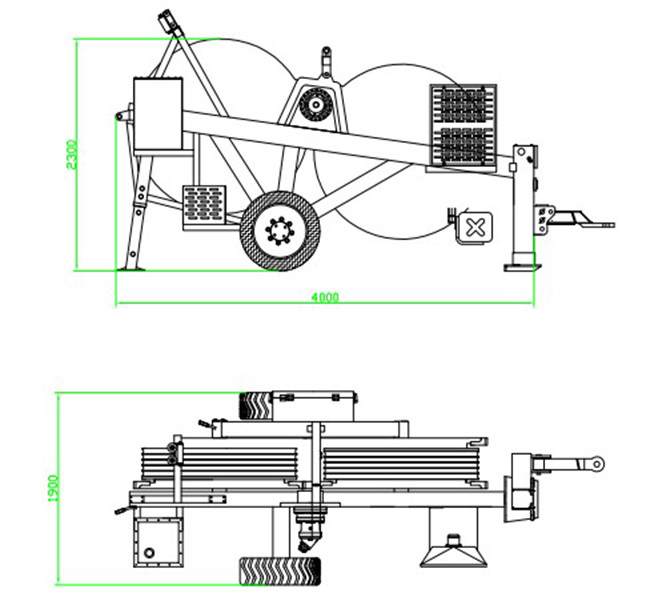

• Overall dimension (length*width*height): 4000×1900×2300mm

Main configuration

1. Engine: Japan Honda (or Robin)
2. Speed reducer: German Rexroth / Italy Brevini
3. Hydraulic meter: German

Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Mechanical meter counters
• Grounding connection point

Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.

Additional Devices

​

Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near Nanjing airport, about 1.5hours.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1. Transmission Line Tension Stringing Equipment and accessories and tools.
2. Nonmetallic galvanized the production equipment (Achieved high-tech products)
3. Numerical control machine
4. Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.

　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German
　　2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.

History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.

3T Transmission Line Tension Stringing Equipment with Honda Gasoline Engine Hydraulic Cable Tensioner

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

Company

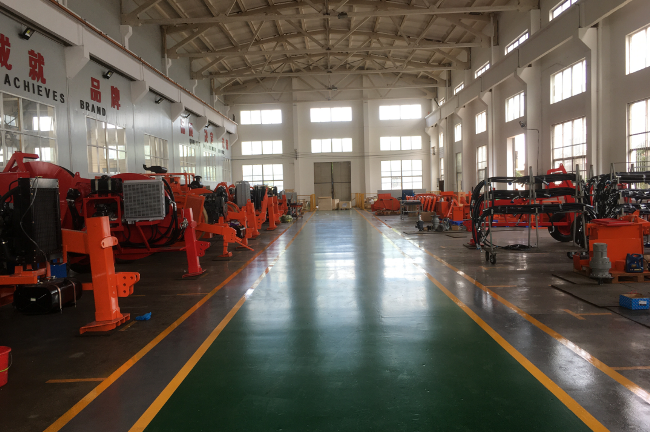

Workshop
