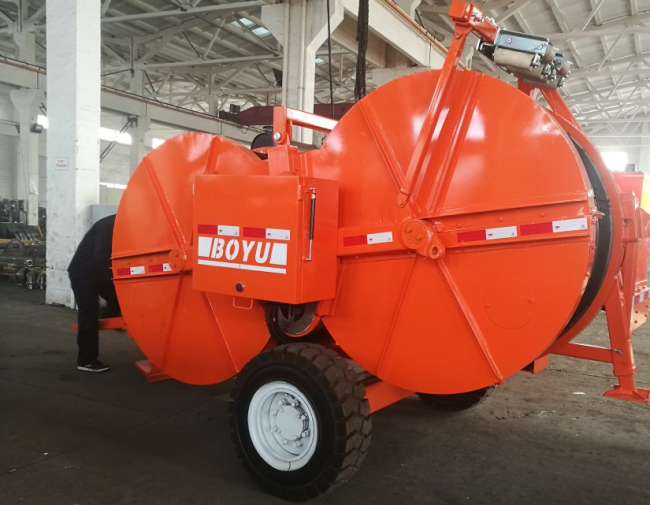

    50kN 5T Tensioner Machine for Overhead Stringing Equipment with German Rexroth Speed Reducer

    Ask Lasest Price
    Brand Name : Boyu
    Certification : ISO9001
    Model Number : TY1X50-2
    Price : Negotiable
    Delivery Time : 25-35 days
    Payment Terms : TT/LC
    Supply Ability : 100sets/month.
    • Product Details
    • Company Profile

    50kN 5T Tensioner Machine for Overhead Stringing Equipment with German Rexroth Speed Reducer


    1x50kN 5T Stringing Equipment with German Rexroth Speed Reducer Hydraulic Cable Tensioner


    Quick details

    • Max tension: 1x50kN Diesel: Cummins 77kw 103hp
    • Max conductor diameter: 55mm Max Optical fiber cable diameter: 21mm
    • Main pump and motor and speed reducer: German Rexroth
    • Hydraulic meter: German
    • Groove number: 6
    • Bull-wheel diameter: 1300/1500mm
    • Engine: Cummins
    • HydraulicTension Stringing Equipment
    • Hydraulic Cable Tensioner
    • Boyu Brand


    Description
    The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.


    Performance


    Max intermittent tension: 1x50kN

    Speed at max tension: 2.5km/h

    Max continuous tension: 1x40kN

    Max speed: 5km/h

    Tension at max speed: 1x25kN

    Max reverse pulling force: 1x45kN

    Max reverse pulling speed: 5km/h


    Engine

    • Diesel 77kw(103hp)
    • Cooling system water
    • Electrical system 24V


    Characteristics

    • Bull-wheel diameter: 1300/1500mm
    • Max conductor diameter: 55mm
    • Max Optical fiber cable diameter: 21mm
    • Groove width: 68mm
    • Groove number: 6
    • Total weight: 2400kg
    • Overall dimension (length*width*height): 4000×1900×2300mm

    Main configuration

    • Engine: Cummins
    • Hydraulic pump: German Rexroth
    • Main motor: German Rexroth
    • Speed reducer: German Rexroth
    • Hydraulic meter: German

    Configuration

    • Hydraulic dynamometers
    • Hydraulic oil cooling system
    • Mechanical meter counters
    • Grounding connection point

    Hydraulic Transmission

    • The machine can realize step less speed.
    • The machine is provided with tension presetting system.


    Additional Devices

    • Lighting system for the trailer
    • Hydraulic brake system for the trailer
    • Hydraulic conductor clamps for drum change operations
    • Electronic pull and speed recorder



    Manufacturer Introduction
    Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. From our factory to Shanghai about 3 hours by car.

    Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
    Hydraulic Tension Stringing Equipment and accessories and tools.
    Nonmetallic galvanized the production equipment (Achieved high-tech products)
    Numerical control machine
    Low voltage no power-arc furnace compensation system

    We produce 40~60sets of stringing equipment each month and all kinds of accessories.


      1. Main configurations of our machine are from Germany and USA
      Engine: American Cummins
      Main pump: German Rexroth
      Main motor& speed reducer: German Rexroth
      Tail bracket hoisting motor: American Eton
      Hydraulic meter: German
      2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
      3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
      4. We can supply the specific components to the buyers with cost price after warranty period.


    1x50kN 5T Stringing Equipment with German Rexroth Speed Reducer Hydraulic Cable Tensioner
