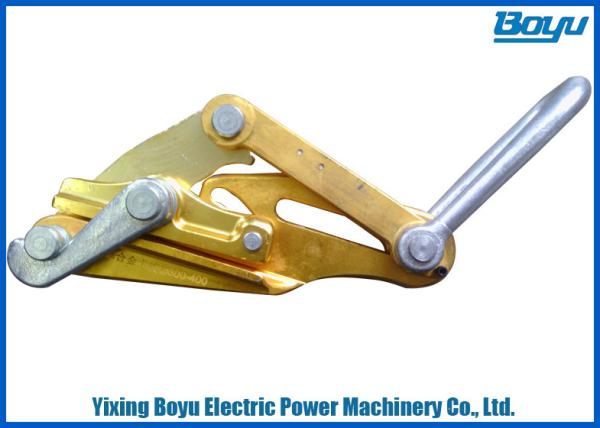

High Strength Self Gripping Clamps Conductor 300~400mm2
Transmission Line Stringing Tools
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Self Gripping Clamps
3. Rated Load: 70kN
4. Conductor size: 300~400mm2
5. Weight: 4.0kgs
6. Boyu Brand
Description:
The self gripping clamps can be use to anchor and to string
conductor (aluminum, ACSR, copper...) and steel rope. The body is
made of high strength hot forged steel or Aluminum, in order to
minimize the ratio between weight and working load.
Specification:
| Model | Conductor size (mm2) | Rated load (kN) | Max. opening (mm) | Weight (kg) | Material |
| SK-10 | 25~70 | 10 | 14 | 1.6 | Steel |
| SK-15 | 95~120 | 15 | 17 | 2.5 | Steel |
| SK-25 | 150~240 | 25 | 23 | 3.8 | Steel |
| SKL-7 | 25~70 | 7 | 14 | 1.0 | Aluminum |
| SKL-15 | 95~120 | 15 | 18 | 1.4 | Aluminum |
| SKL-25 | 150~240 | 25 | 24 | 3.0 | Aluminum |
| SKL-40 | 300~400 | 40 | 32 | 4.0 | Aluminum |
| SKL-50 | 500-630 | 50 | 36 | 6.6 | Aluminum |
| SKL-40G | 400 | 40 | 32 | 4.3 | Aluminum |
| SKL-50G | 500 | 50 | 34 | 7.0 | Aluminum |
| SKL-50GA | 630 | 50 | 36 | 7.3 | Aluminum |
| SKL-60G | 720 | 60 | 38 | 9.2 | Aluminum |
| SKL-70G | 900 | 70 | 42 | 14 | Aluminum |
| SKL-80G | 1000 | 80 | 45 | 18 | Aluminum |
| SKL-80GA | 1200 | 80 | 48 | 18 | Aluminum |

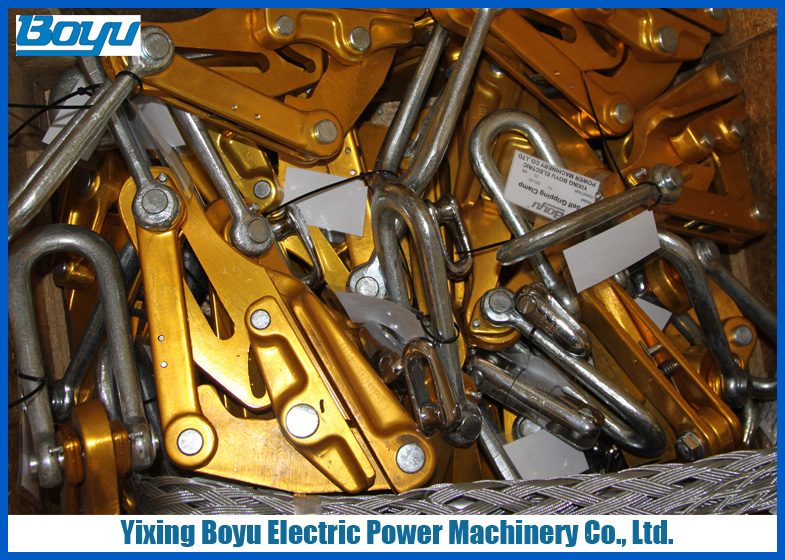

More Pictures
Maufacturer Introduction
Yixing Boyu Electric Power Machinery Company is located in west
side of the beautiful and fertile Taihu Lake. We are near Shanghai
City, about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. Our company has a total
area of 42800 square meters, having formed four series products:
1: Line Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved
high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
We produce 40~60sets of stringing equipment each month and all
kinds of accessories.
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the
AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise,
also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also
achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company
establishing the Boset brand
In 2010 achieved the national ministry of science and technology
innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and
tension equipment (excluding mobile ground grinding) nearly 5000
sets. Our products are sold well in Australia, Egypt, England,
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria,
Turkey, Peru, Colombia, Brazil, Argentina etc.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 25 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
