60kN Transmission Line Stringing Equipment Tractor Puller Max 16mm
Steel Wire Rope TYZ550
Quick details:
- Tansmission Line Stringing Equipment
- Tractor Puller
- Wheel diameter: 325mm
- Max pull: 50kN
- Max rope diameter: 16mm
- Groove number: 6
- Boyu Brand
Description

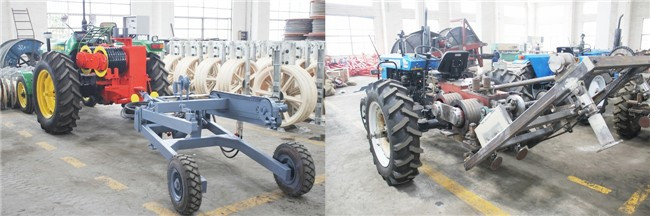

Modified from Shanghai 50-tractor, this mechanically driven machine
has the advantages such as simple operation, high tractive force
and fast speed, making it not only a good choice for pole setting,
tower erecting and stringing in construction but also an ideal tool
for long-distance traction or tension stringing.
Performance
| Gear | 1 | 2 | 3 | 4 | 5 | 6 | Reverse1 | Reverse2 |
| Pulling force (kN) | 50 | 30.6 | 16.2 | 12.7 | 7.7 | 4 | | |
| Speed (m/min) | 10.13 | 16.65 | 31.55 | 40 | 66.61 | 126.3 | 13.34 | 50.3 |
Characteristics
- Puller wheel diameter: 325mm
- Groove number: 6
- Max diameter of applicable steel rope: 16mm
- Total weight: 2260kg
- Overall dimension (length*width*height): 3360×1750×2320mm
Reel Hydraulic Winder
Description
The reel winders are suitable to work with any hydraulic power
unit, in particular with pullers and puller-tensioners, and operate
as separated winding systems. They are equipped with automatic
level wind and negative self-acting hydraulic brake. The frame is
made of welded steel with protective coating. The reel winders can
lift the reel by hydraulic jacks powered by the same hydraulic
source.
Characteristics
- Max rope diameter: 20mm
- Max diameter of rope reel: 1600mm
- Total weight: 450kg
- Overall dimension: 2200x1700x700mm
Main configuration
- Hydraulic motor: Italy Sauer-Danfoss
- Hydraulic meter: German
- Hydraulic valve: Japan Yuken
Customers visiting
Company Introduction
Yixing Boyu Electric Power Machinery Company is located in west
side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. Our company has a total
area of 42800 square meters, having formed four series products:
Overhead Transmission line stringing equipment and accessories and
tools.
Nonmetallic galvanized the production equipment (Achieved high-tech
products)
Numerical control machine
Low voltage no power-arc furnace compensation system
We produce 40~60sets of stringing equipment each month and all
kinds of accessories.
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the
AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise,
also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also
achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company
establishing the Boset brand
In 2010 achieved the national ministry of science and technology
innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and
tension equipment (excluding mobile ground grinding) nearly 5000
sets. Our products are sold well in Australia, Egypt, England,
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria,
Turkey, Peru, Colombia, Brazil, Argentina etc.
Container loading
