Max Pull Tension Force 25kN 2.5T Overhead Line Stringing Equipment
36mm Conductor Puller Tensioner TY25TP
Quick details:- Overhead Line Stringing Equipment
- Max Conductor diameter: 36mm
- Max rope diameter: 10mm
- Hydraulic Puller Tensioner
- Max pull: 25kN 2.5Tons
- Diesel: Cummins 48kw(64hp)
- Main pump and motor: German Rexroth
- Speed Reducer: German Rexroth
- Bull-wheel diameter: 1500mm
- Boyu Brand
|
Description
The machine is suitable to string one rope or one conductor. The
bull-wheel grooves are made of high resistance interchangeable
nylon sectors. The machine is completely electronically controlled. Engine - Diesel 48kw(85hp)
- Cooling system water
- Electrical system 24V
| Performance
Max pull- Max pull: 25kN
- Speed at max pull: 1.3km/h
- Max speed: 4km/h
- Pull at max speed: 8kN
Max tension - Max tension: 25kN
- Max speed: 4km/h
|
Characteristics- Bull-wheel diameter: 1500mm
- Max rope diameter : 10mm
- Max conductor diameter: 36mm
- Total weight: 2300kg

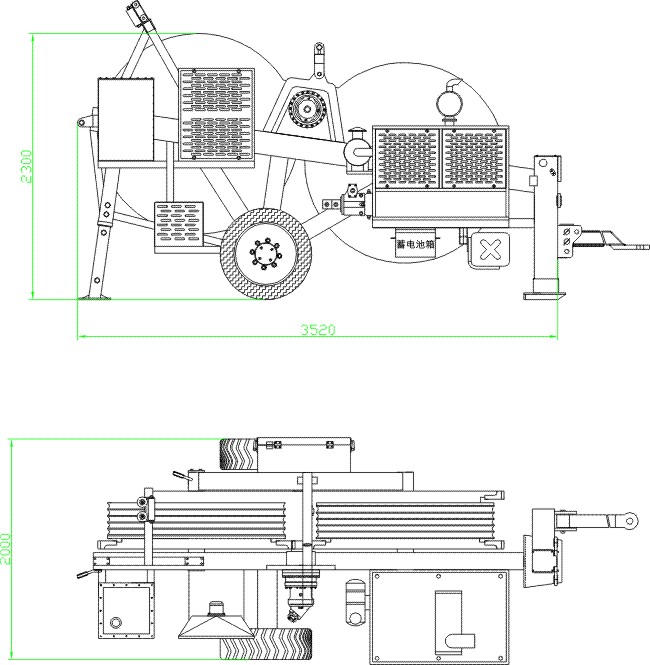

- Overall dimension (length*width*height): 3520×2000×2300mm
| Main configuration- Engine: Cummins
- Main pump: German Rexroth
- Main motor speed reducer: German Rexroth
- Hydraulic meter: German
|
Configuration- Negative self-acting hydraulic brakes
- Hydraulic dynamometers with set-point and automatic control of
maximum pull
- Hydraulic oil cooling system
- Digital meter counters
- Control instruments for hydraulic system and diesel engine
- Rigid axles for towing at max speed of 30km/h with mechanical
parking brake
- Hydraulic power pack to control up to 2 reel stands with hydraulic
head or 2 reel winders with independent controls
- Hydraulic front stabilizer
- Grounding connection point
| Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with 2 pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur. Additional Devices - Lighting system for the trailer
- Hydraulic brake system for the trailer
- 2 hydraulic conductor clamps for drum change operations
- Electronic pull and speed recorder
|

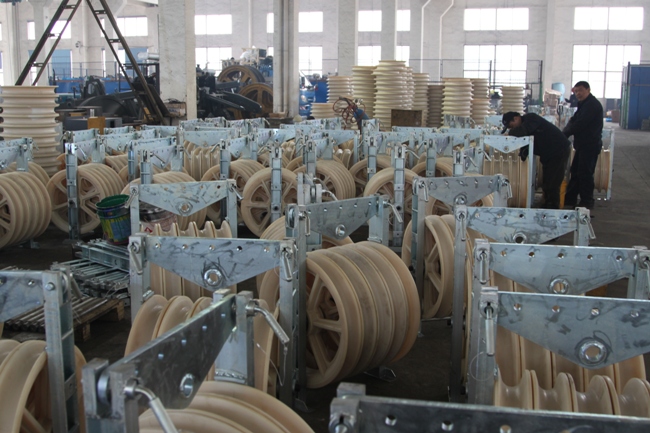

Company Introduction
Yixing Boyu Electric Power Machinery Company is located in west
side of the beautiful and fertile Taihu Lake.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the
AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise,
also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also
achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company
establishing the Boset brand
In 2010 achieved the national ministry of science and technology
innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and
tension equipment (excluding mobile ground grinding) nearly 5000
sets. Our products are sold well in Australia, Egypt, England,
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria,
Turkey, Peru, Colombia, Brazil, Argentina etc.
