280kN 28tons Overhead Transmission Line Stringing Equipment
Hydraulic Puller TY280
Quick details:
- Overhead Tansmission Line Stringing Equipment
- Hydraulic Puller
- Max pull: 280kN 28T
- Max rope diameter: 38mm
- Max reel size: 1600mm
- Diesel: Cummins 298kw (400hp)
- Main pump and motor: German (Rexroth)
- Tail bracket hoisting motor: American (Eton)
Performance
- Max intermittent pull: 280kN
- Max continuous pull: 250kN
- Speed at max pull: 2.5km/h
- Max speed: 5km/h
- Pull at max speed: 120kN
Description
This machine is mainly applied in long-span and mountainous areas
and foothills for tension stringing of 4-bundle conductor of 500kV
or twin-bundle conductor of 220kV and conductor 800mm2 below,
allowing for the tension stringing of 500kV haulage rope in various
terrains.
Engine
- Diesel 298kw(400hp)
- Cooling system water
- Electrical system 24V
Characteristics
- Bull-wheel diameter: 960mm
- Groove number: 11
- Max rope diameter : 38mm
- Max diameter of coupling: 100mm
- Electric system: 24V
- Max diameter of rope reel: 1600mm
- Total weight: 12800kg
- Overall dimension (length*width*height): 5800×2500×2850mm
Main configuration
Hydraulic meter: German | Tail bracket hoisting motor: American (Eton) |
Engine: Cummins | Main pump: German (Rexroth) |
Main motor speed reducer: German (Rexroth) | Main Valve German Rexroth |
Configuration
Hydraulic dynamometer with set-point and automatic control of
maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for
standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point
Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur.
Additional Devices
Lighting system for the trailer
Hydraulic brake system for the trailer
Extra rollers for an additional pilot rope
Hydraulic rope clamp for reel change operations
Extra shaft
Electronic pull and speed recorder
More pictures

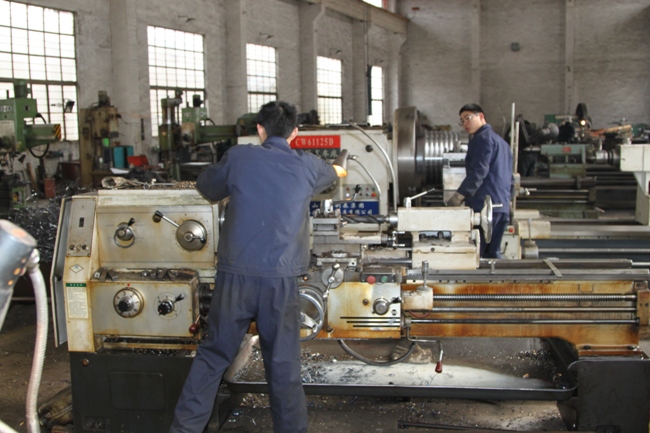

Company Introduction
Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1997, having 15 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
