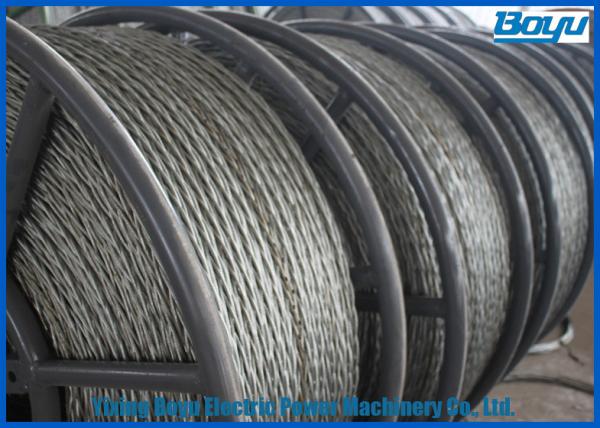

13mm Anti-twisting Pilot Steel Wire Rope Six Squares Twelve Strands
transmission Line Stringing
Quick details:
- Transmission Line Stringing Accessories Anti-twisting Pilot Steel Wire Rope
- Size: 13mm Breakage load: 120kN|
- Size available: 9~30mm
- 6 Squares 12 Strands
- Length: 1000m Reel diameter: 1100mm
- Boyu Brand
Description
Anti-twisting Pilot wire rope with high strength hot dip galvanized
steel quality air processed by the special process of special woven
rope line. It has high strength, good flexibility, corrosion
rust-proof, not to fight the golden hook, and difficult to tie,
long life and so on. Tension applied to pay-off power lines
construction, lifting equipment with the balance shaft and the tail
rope of mine, port and other major lift crane wire rope does not
rotate when the required place.
| Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) | Diameter of spool (mm) | Total weight (kgs) |
| YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
| YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
| YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
| YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
| YL16-12x19W | 16 | 12 Strands | 158 | 1000 | 1250 | 886 |
| YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
| YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
| YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
| YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
| YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
| YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
| YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
| YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
| YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
| YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
| YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |

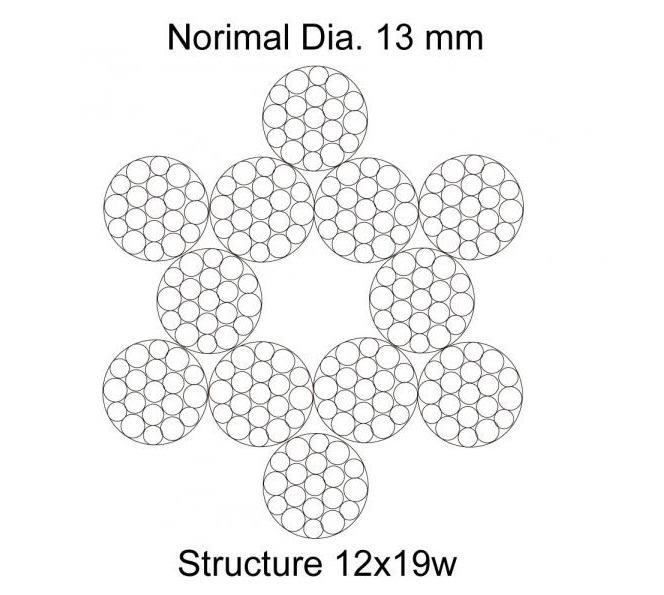

Structure: 13mm Anti-twisting Pilot Steel Wire Rope Six Squares
Twelve Strands transmission Line Stringing
Customers
Maufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is
located in west side of the beautiful and fertile Taihu Lake.
Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
