24mm Anti-twisting Breaking Load 360kN Braided Steel Wire Rope
Overhead Line Stringing Pilot Rope
Quick details:
Transmission Line Stringing Accessories
- Size available: 9~30mm
- 6 Squares 12 Strands
- Anti-twisting Braided Steel Wire Rope
- Normal Diameter: 24mm
- Breakage load: 360kN
- Length: 800m
- Reel diameter: 1440mm

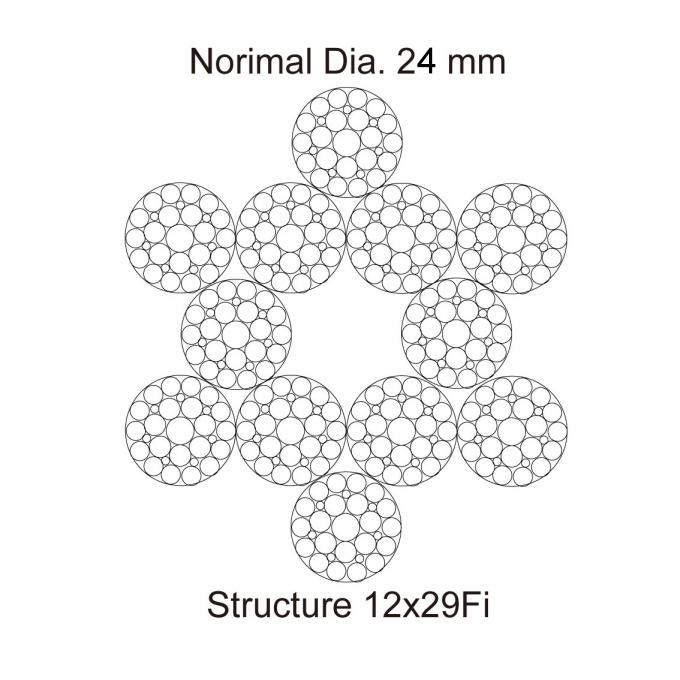

- Rope structure: 29Fi
- Boyu Brand
Description
Anti twist braided galvanized steel pilot wire rope with high
strength hot dip galvanized steel quality air processed by the
special process of special woven rope line. It has high strength,
good flexibility, corrosion rust-proof, not to fight the golden
hook, and difficult to tie, long life and so on. Tension applied to
pay-off power lines construction, lifting equipment with the
balance shaft and the tail rope of mine, port and other major lift
crane wire rope does not rotate when the required place.
| Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) | Diameter of spool (mm) | Total weight (kgs) |
| YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
| YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
| YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
| YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
| YL16-12x19W | 16 | 12 Strands | 158 | 1000 | 1250 | 886 |
| YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
| YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
| YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
| YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
| YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
| YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
| YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
| YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
| YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
| YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
| YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |
Structure: 9mm 55kN Anti twisted Braided Steel Pilot Wire Rope Line
Stringing 6 Squares 12 Strands
Maufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is
located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. 1. Main configurations
of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1997, having 15 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
