Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed
Reducer Cummins Diesel Engine
Quick details
1. HydraulicTension Stringing Equipment
2. Hydraulic Tensioner
3. Max tension: 1x50kN
4. Diesel: Cummins 77kw 103hp
5. Max conductor diameter: 55mm
6. Max Optical fiber cable diameter: 21mm
7. Main pump and motor and speed reducer: German Rexroth
8. Hydraulic meter: German
9. Groove number: 6
10. Bull-wheel diameter: 1300/1500mm
11. Engine: Cummins
12. Boyu Brand
Description
The machine is hydraulically controlled for the tensile force and
complete with quality parts and components such as hydraulic break,
high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient
performance. The hydraulic power unit provides the traction of
conductors at both positive and negative directions. The
single-beam trailer chassis is also adopted, where lifting points
are pre-set for anchoring and temporary anchoring, to achieve a
portable compact integrity easy to be loaded, transported and
transferred.
Performance
- Max intermittent tension: 1x50kN
- Max continuous tension: 1x40kN
- Speed at max tension: 2.5km/h
- Max speed: 5km/h
- Tension at max speed: 1x25kN
- Max reverse pulling force: 1x45kN
- Max reverse pulling speed: 5km/h
Engine
- Diesel 77kw(103hp)
- Cooling system water
- Electrical system 24V
Characteristics
- Bull-wheel diameter: 1300/1500mm
- Max conductor diameter: 55mm
- Max Optical fiber cable diameter: 21mm
- Groove width: 68mm
- Groove number: 6
- Total weight: 2400kg
- Overall dimension (length*width*height): 4000×1900×2300mm
Main configuration
- Engine: Cummins
- Operating handle: German Rexroth
- Hydraulic pump: German Rexroth
- Main motor: German Rexroth
- Speed reducer: German Rexroth
- Hydraulic meter: German
Configuration
- Hydraulic dynamometers
- Hydraulic oil cooling system
- Mechanical meter counters
- Grounding connection point
Hydraulic Transmission
- The machine can realize step less speed.
- The machine is provided with tension presetting system.
Additional Devices
- Lighting system for the trailer
- Air brake system for the trailer(extra charge)
- Hydraulic conductor clamps for drum change
operations (extra charge) - Swivel guide rope roller
- Trailer for towing at max speed of 30 km/h
- Digital speed and meter counter
More photos
Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is
located in west side of the beautiful and fertile Taihu Lake. From
our factory to Shanghai about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. Our company has a total
area of 42800 square meters, having formed four series products:
Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech
products)
Numerical control machine
Low voltage no power-arc furnace compensation system
We produce 40~60sets of stringing equipment each month and all
kinds of accessories.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
Work site

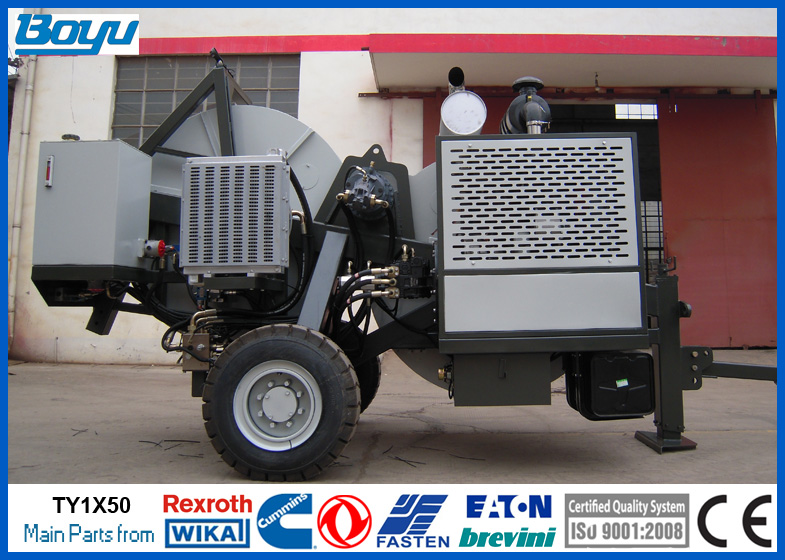

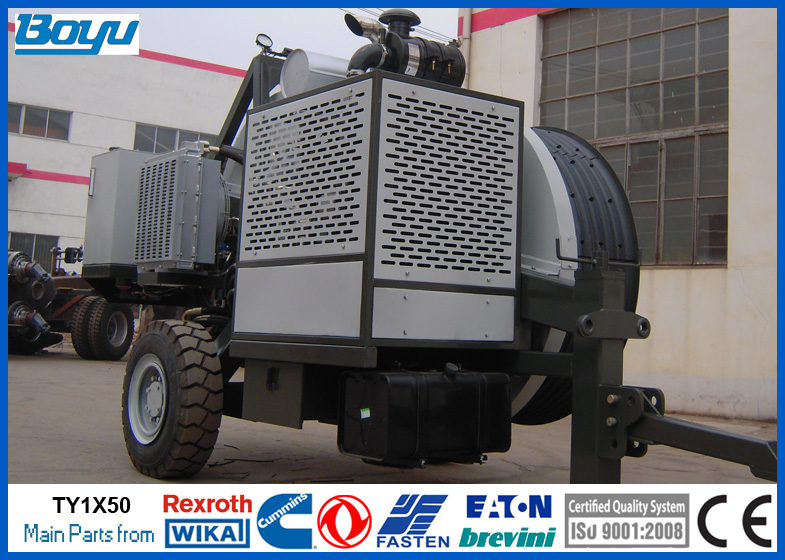

1x50kN 5T Hydraulic Tension Stringing Equipment with German Rexroth
Speed Reducer TY1X50
TY1x50 Hydraulic Tensioner The machine is hydraulically controlled for the tensile force and
complete with quality parts and components such as hydraulic break,
high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient
performance. The hydraulic power unit provides the traction of
conductors at both positive and negative directions. The
single-beam trailer chassis is also adopted, where lifting points
are pre-set for anchoring and temporary anchoring, to achieve a
portable compact integrity easy to be loaded, transported and
transferred. |
Characteristics Bull-wheel diameter:1500mm Max conductor diameter: 55mm Max Optical fiber cable diameter: 21mm Groove width: 68mm Groove number: 6 Total weight:4400kg Overall dimension (length*width*height): 4000×1900×2300mm | Performance Max intermittent pull:50kN Max continuous pull: 40kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed:25kN Max reverse pulling force: 45kN Max reverse pulling speed: 2.4km/h |
Main configuration Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth | Engine Diesel 77kw(103hp) Cooling system water Electrical system 24V |
Hydraulic Transmission The machine can realize step less speed. The machine is provided with tension presetting system. |
Configuration Hydraulic dynamometers Hydraulic oil cooling system Mechanical meter counters Grounding connection point Hydraulic power pack to control drum stands with hydraulic motor | Additional Devices Lighting system for the trailer Air brake system for the trailer Hydraulic conductor clamps for drum change operations (extra
charge) Swivel guide rope roller Trailer for towing at max speed of 30 km/h Digital speed and meter counter |
